Körperachsen, Ebenen & Richtungen Illustration

Körperachsen, Ebenen & Richtungen Illustration

Share link
Prompt

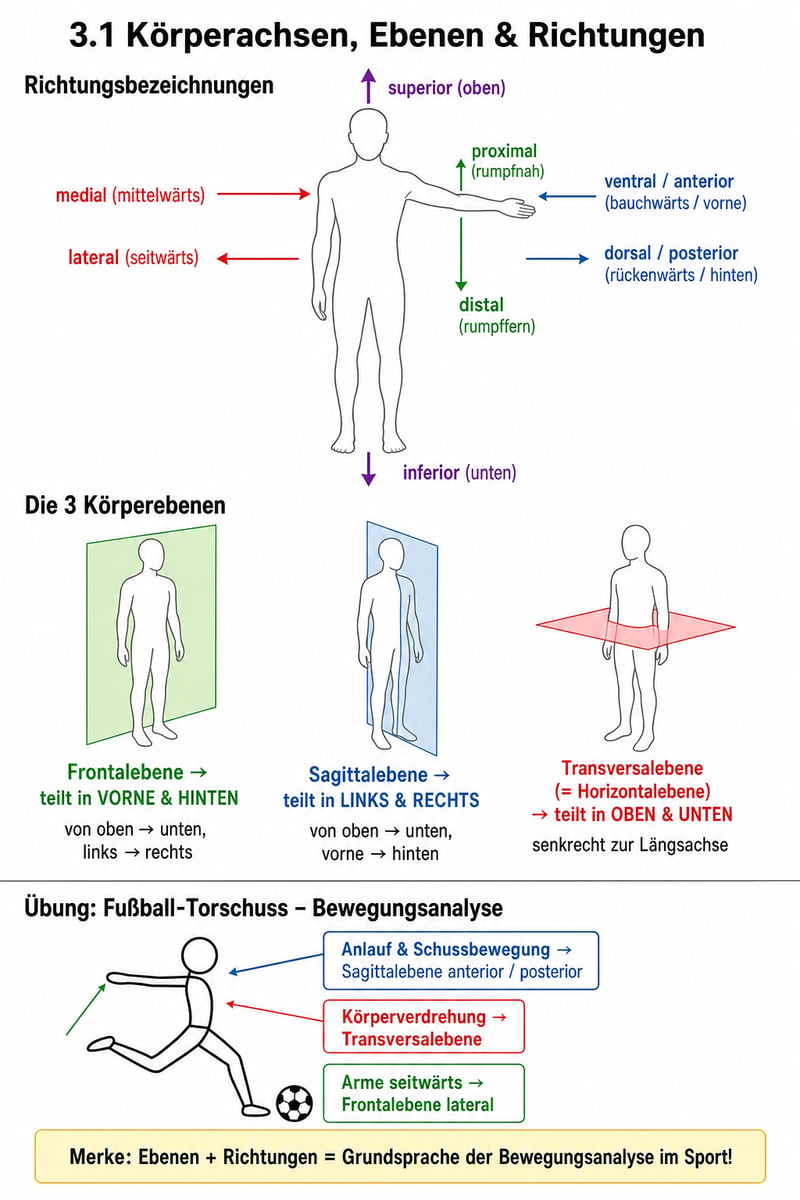

Create a clean flat-vector educational illustration in 2:3 portrait format (e.g. 800×1200px). White background, no shadows, no gradients. All labels in German. Sans-serif font throughout. Title at top (bold, large): "3.1 Körperachsen, Ebenen & Richtungen" --- TOP SECTION: RICHTUNGSBEZEICHNUNGEN --- Subtitle (bold): "Richtungsbezeichnungen" Draw a front-facing human body silhouette (simple gray outline, upright standing position). Place labeled arrows pointing to or from the body: LEFT SIDE of figure: - Horizontal arrow pointing INWARD toward spine → "medial (mittelwärts)" - Horizontal arrow pointing OUTWARD away from spine → "lateral (seitwärts)" RIGHT SIDE of figure: - Arrow pointing to FRONT of torso → "ventral / anterior (bauchwärts / vorne)" - Arrow pointing to BACK of torso → "dorsal / posterior (rückenwärts / hinten)" ON THE ARM (right arm extended): - Arrow pointing UP toward shoulder → "proximal (rumpfnah)" - Arrow pointing DOWN toward hand → "distal (rumpffern)" TOP of figure: - Arrow pointing UP → "superior (oben)" BOTTOM of figure: - Arrow pointing DOWN → "inferior (unten)" Use color coding: RED = medial/lateral pair | BLUE = ventral/dorsal pair | GREEN = proximal/distal pair | PURPLE = superior/inferior pair --- MIDDLE SECTION: KÖRPEREBENEN --- Subtitle (bold): "Die 3 Körperebenen" Draw 3 simplified body outlines side by side, each showing ONE plane as a colored semi-transparent sheet cutting through the body: Figure 1: FRONTALEBENE - GREEN vertical sheet cutting front vs. back - Label below: "Frontalebene → teilt in VORNE & HINTEN" - Small arrow: "von oben → unten, links → rechts" Figure 2: SAGITTALEBENE - BLUE vertical sheet cutting left vs. right - Label below: "Sagittalebene → teilt in LINKS & RECHTS" - Small arrow: "von oben → unten, vorne → hinten" Figure 3: TRANSVERSALEBENE - RED horizontal sheet cutting top vs. bottom - Label below: "Transversalebene (= Horizontalebene) → teilt in OBEN & UNTEN" - Small arrow: "senkrecht zur Längsachse" --- BOTTOM SECTION: ÜBUNGSBEISPIEL --- Subtitle (bold): "Übung: Fußball-Torschuss – Bewegungsanalyse" Draw a minimal stick figure in a kicking pose (side view). Place 3 labeled callout boxes: Callout 1 (blue): "Anlauf & Schussbewegung → Sagittalebene | anterior / posterior" Callout 2 (red): "Körperverdrehung → Transversalebene" Callout 3 (green): "Arme seitwärts → Frontalebene | lateral" Small summary box at very bottom (light yellow background): "Merke: Ebenen + Richtungen = Grundsprache der Bewegungsanalyse im Sport!"
